I have two different styles of handle and cable. I only know for sure which one went on Jeep #34692.

The one with the sleave and longer handle came off Jeep #34692

                                        From the '49 parts list
HANDLE and RATCHET TUBE,  emergency brake, assembly (Up to Ser. No. 183498)  Part No. A-15150
HANDEL and RACHET TUBE,  emergency brake assembly (after Ser. No. 183498)  Part No.  646141

HANDLE, operating (Black) (up to Ser. No 44304)  Part No. 639244
HANDLE, operating (Chrome) (After Ser. No. 44304)  Part No. 643123

CABLE and CONDUIT, ratchet tube assembly (Up to Ser. No. 183498) Part No. 640353
CABLE and CONDUIT, ratchet tube, assembly (After Ser. No. 183498) Part No. 646142








The cable length for the sleeved style (from Jeep #34692) is 38 1/2" from the end of the ball to the inside of the nut on the turnbuckel yolk.

The length of the cable with the ball end is 42" from the center line of the ball to the inside of the nut on the turnbuckel yolk.

CJ2A #10021 #34692 #58500

Back to Top
Lomar15 View Drop Down
Member
Member
Avatar
Sponsor Member

Joined: 01 Jan. 2006
Location: Fanny Bay, B.C. Canada
Status: Offline
Points: 1226
Post Options Post Options   Thanks (0) Thanks(0)   Quote Lomar15 Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jan. 2007 at 6:48pm
Gary: the longer handle with the pin is the same as on Mine #48777. The shorter one with the ball is the same as my M38 one.  Also the cable goes past the passenger side of the transmission toward the brake lever(on the transfercase), and on th M38 it goes past the drivers side with a shorter brake lever. I'll have to take some picture's to confirm this.

Bob


Edited by Lomar15 - 03 Jan. 2007 at 6:54pm
46 CJ2A #48777
42 MB Slat Grill 119898 Frame
51 M38 Body
42 MB #155950
Spen Trailer

http://picasaweb.google.com/lomar15CJ2A
Back to Top
sean View Drop Down
Moderator Group
Moderator Group
Avatar
Sponsor Member

Joined: 20 July 2005
Location: North Idaho
Status: Offline
Points: 7328
Post Options Post Options   Thanks (0) Thanks(0)   Quote sean Quote  Post ReplyReply Direct Link To This Post Posted: 11 Aug. 2007 at 10:20pm
Regarding "black" vs "chrome" handles

Part no. 639244 - HANDLE, operating (Black) (up to SN 44304)

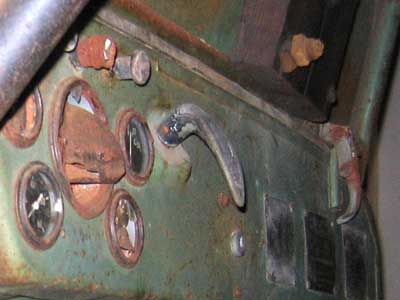

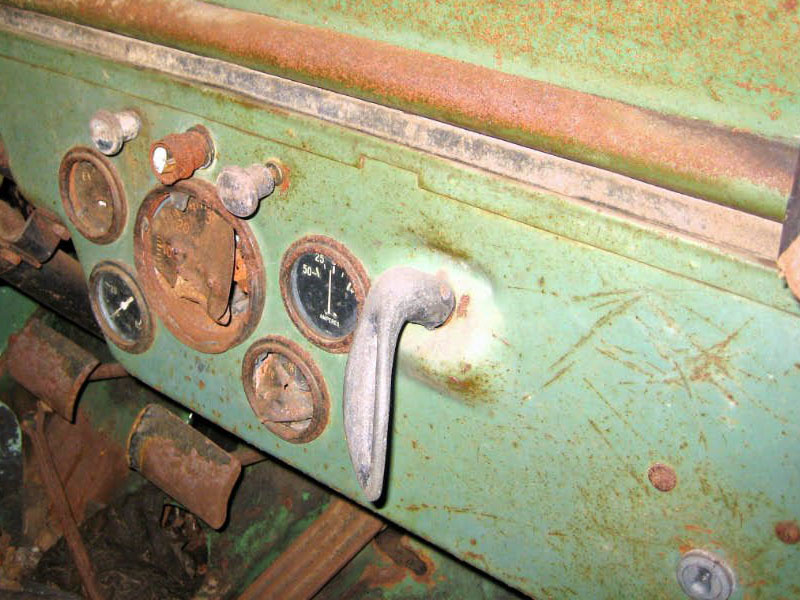

Photos from connomans #10371 "barn find".  Most of the black paint is worn off, but still obvious when viewed from the right angle:

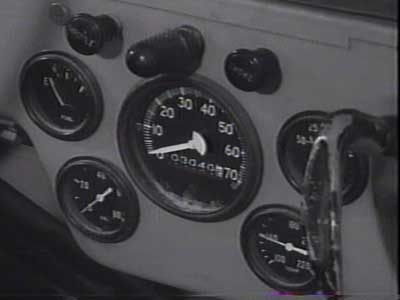

And a clip from Tims recent 3-Stooges movie:



Part no. 643123 - HANDLE, operating (Chrome) (After Ser. No. 44304)

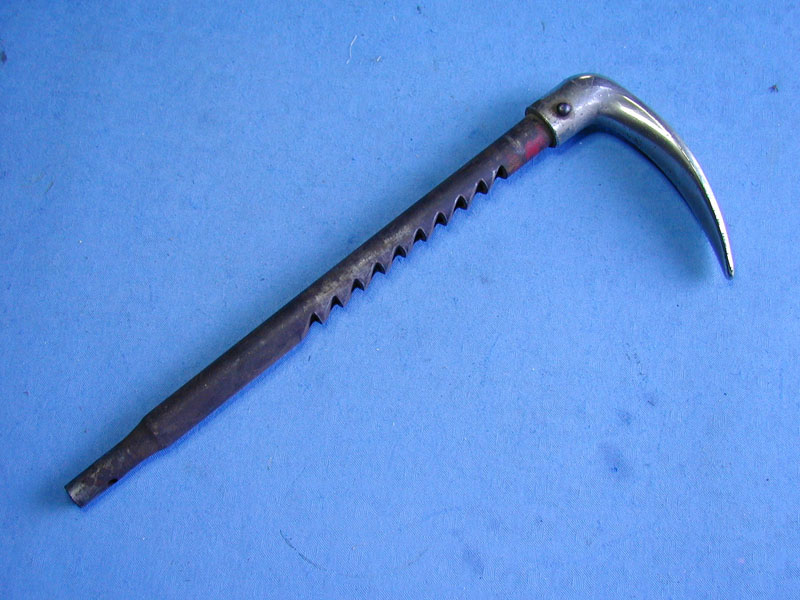

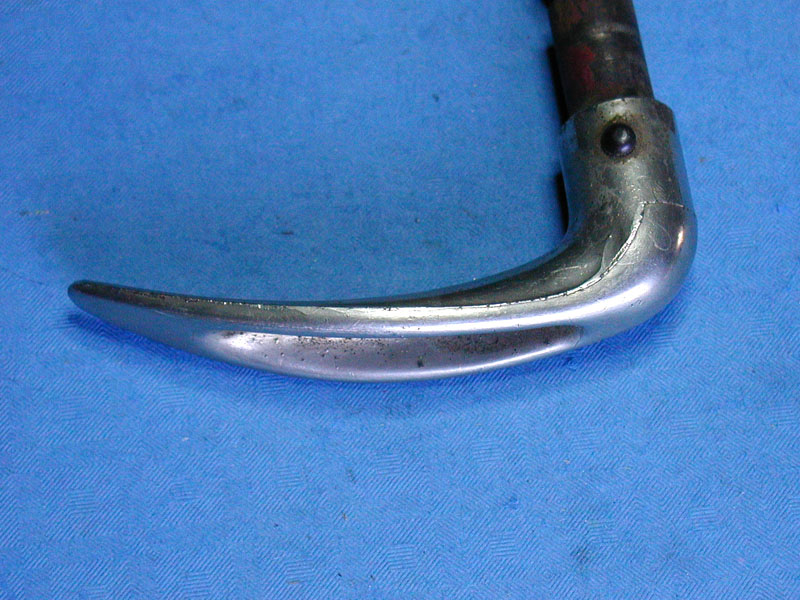

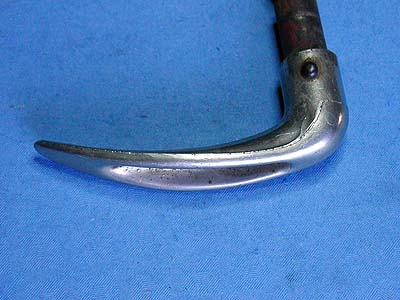

"Chrome" (maybe nickel plate) is mostly intact:





Sean


Edited by sean - 14 Aug. 2007 at 9:37pm
Back to Top
GaryArf View Drop Down
Member
Member
Avatar
Sponsor Member

Joined: 21 July 2005
Location: Baxter MN
Status: Offline
Points: 3895
Post Options Post Options   Thanks (0) Thanks(0)   Quote GaryArf Quote  Post ReplyReply Direct Link To This Post Posted: 10 Oct. 2009 at 1:09pm
Looks like I used Cat's photobucket account Cry I'll repost pics of the cables here.




Here is a little different cable that came off a VEC  16xxx. notice how much more heavy duty this cable is, it's almost 50% bigger!  Anyone ever seen one like this?









CJ2A #10021 #34692 #58500

Back to Top
tony View Drop Down
Member
Member


Joined: 23 Nov. 2005
Location: ohio
Status: Offline
Points: 1361
Post Options Post Options   Thanks (0) Thanks(0)   Quote tony Quote  Post ReplyReply Direct Link To This Post Posted: 10 Oct. 2009 at 8:44pm
Me, Sam and Del had a little discussion on this at the fall reunion..I noted this years ago
Back to Top
GaryArf View Drop Down
Member
Member
Avatar
Sponsor Member

Joined: 21 July 2005
Location: Baxter MN
Status: Offline
Points: 3895
Post Options Post Options   Thanks (0) Thanks(0)   Quote GaryArf Quote  Post ReplyReply Direct Link To This Post Posted: 10 Oct. 2009 at 8:53pm
Tony my friend you need to post some pics! What do you make of this cable? did you find it on an VEC?  Do you think this was a military? or just a heavy duty replacement?
CJ2A #10021 #34692 #58500

Back to Top
tony View Drop Down
Member
Member


Joined: 23 Nov. 2005
Location: ohio
Status: Offline
Points: 1361
Post Options Post Options   Thanks (0) Thanks(0)   Quote tony Quote  Post ReplyReply Direct Link To This Post Posted: 10 Oct. 2009 at 9:08pm
The smaller ones I have found were located on the VEC and the larger ones on the later 47 48
I also notice a difference in the holding bracket itself...

And if I had any patients anymore I would learn to post pics..... naaaaaLOL
