Clutch Release Cable

 Post Reply Post Reply
Author
Message
sean View Drop Down
Moderator Group
Moderator Group

Sponsor Member

Joined: 20 July 2005
Location: North Idaho
Status: Offline
Points: 7368
Post Options Post Options   Thanks (0) Thanks(0)   Quote sean Quote  Post ReplyReply Direct Link To This Post Topic: Clutch Release Cable
    Posted: 01 Jan. 2009 at 11:01am
Group 11-02 : Clutch Control Parts
Part No. 640124 : CABLE, clutch control

Here's a great case of Willys using one part number for 2 different parts.  This may be why some run into problems with clutch release after replacing this cable.

Photos will enlarge.
top: p/n 640124, 10 1/4" long, after s/n 12315
bottom: p/n 640124, 11" long, up to s/n 12315

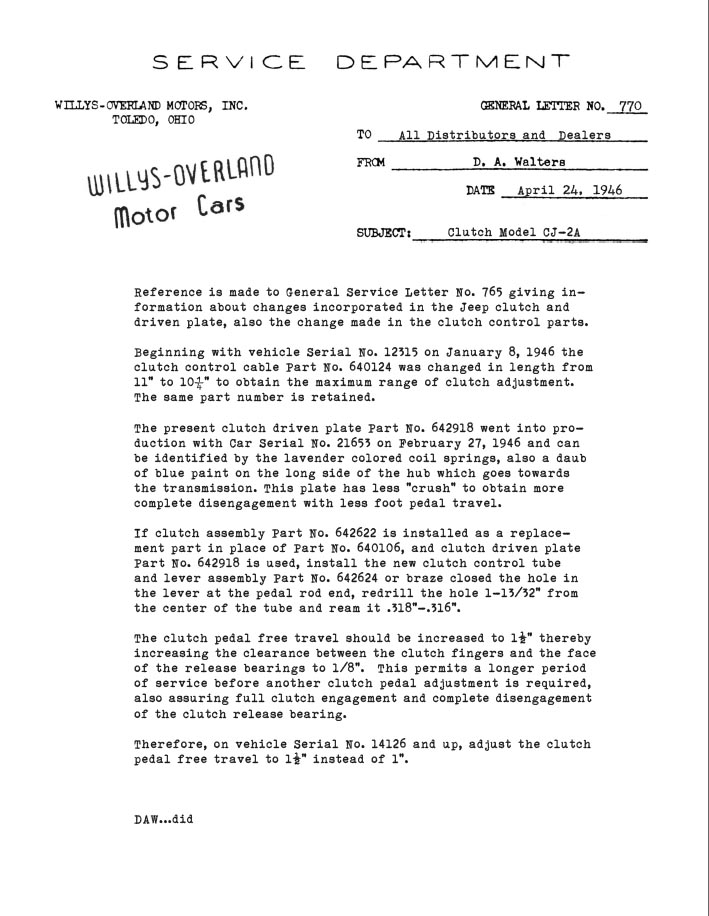

The service bulletin referencing the change:

Sean
Back to Top
samcj2a View Drop Down
Member
Member
Avatar
Sponsor Member x 5

Joined: 21 Oct. 2006
Location: Arlington, VA
Status: Offline
Points: 8539
Post Options Post Options   Thanks (0) Thanks(0)   Quote samcj2a Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jan. 2009 at 1:13pm
That seems to be a pretty significant issue for the DIYer not having access to service bulletins and also having the stated combination of parts.  Thanks for posting that one.  Now, if only I can remember it is here when the time comes to deal with any clutch issues. LOL
Sam

1946 CJ2A   15292 ACM    6678

1947 CJ2A 122031 ACM 111989

Are Glass Bowl Fuel Pumps OE?
Back to Top
sean View Drop Down
Moderator Group
Moderator Group

Sponsor Member

Joined: 20 July 2005
Location: North Idaho
Status: Offline
Points: 7368
Post Options Post Options   Thanks (0) Thanks(0)   Quote sean Quote  Post ReplyReply Direct Link To This Post Posted: 03 Jan. 2009 at 9:32am
Sam:
Quote That seems to be a pretty significant issue for the DIYer not having access to service bulletins
Sure is.  I'd like to see what the original bulletin (#765) said.

Considering that 3 inter-related parts changed w/in a short time span, there's 8 possible combinations of cable, lever shaft & clutch disc.  Certainly, not all combos can be compatible.

Reference to "relocating" the lever hole to 1 13/32" w/out mentioning the original spec makes me wonder if cable travel was increased or decreased.

Sean
Back to Top
Bob W View Drop Down
Member
Member

Sponsor Member x 4

Joined: 08 Aug. 2005
Location: Monticello, NY
Status: Offline
Points: 1462
Post Options Post Options   Thanks (0) Thanks(0)   Quote Bob W Quote  Post ReplyReply Direct Link To This Post Posted: 04 Jan. 2009 at 5:19pm



Back to Top
samcj2a View Drop Down
Member
Member
Avatar
Sponsor Member x 5

Joined: 21 Oct. 2006
Location: Arlington, VA
Status: Offline
Points: 8539
Post Options Post Options   Thanks (0) Thanks(0)   Quote samcj2a Quote  Post ReplyReply Direct Link To This Post Posted: 04 Jan. 2009 at 5:41pm
Thanks, Bob.

Sean, unless I'm not visualizing these parts correctly, I think that the cable travel is increased with the cable attached to the control lever at a greater distance from the fulcrum, or pviot point, with the same amount of pedal travel resulting in more movement of the cable and the clutch pressure plate levers and a quicker engagment or disengagement.


Edited by samcj2a - 04 Jan. 2009 at 5:41pm
Sam

1946 CJ2A   15292 ACM    6678

1947 CJ2A 122031 ACM 111989

Are Glass Bowl Fuel Pumps OE?
Back to Top
Jeff View Drop Down
Member
Member
Avatar
Sponsor Member

Joined: 23 July 2005
Location: NH
Status: Offline
Points: 852
Post Options Post Options   Thanks (0) Thanks(0)   Quote Jeff Quote  Post ReplyReply Direct Link To This Post Posted: 04 Jan. 2009 at 7:22pm
to add to the dilemma, I have also found that after replacing a clutch, I had to change my clutch rod to a shorter one.  This change was due a lack of adjustment available in the cable.  From what I have read, over the years there has been changes made to the clutch assemblies which necessitates changes in the rod.

Jeff


Edited by Jeff - 05 Jan. 2009 at 7:22pm
Back to Top
sean View Drop Down
Moderator Group
Moderator Group

Sponsor Member

Joined: 20 July 2005
Location: North Idaho
Status: Offline
Points: 7368
Post Options Post Options   Thanks (0) Thanks(0)   Quote sean Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jan. 2009 at 10:00am
Excellent Bob, thank you!

Interesting that there's no mention of the shorter cable in this earlier bulletin though.

Sam, I'm reading it differently.  Cable travel should be reduced.  Original hole at 1 5/8" (= 1 20/32"), new hole at 1 13/32", makes shorter moment arm.

Sean


Edited by sean - 05 Jan. 2009 at 10:05am
Back to Top
samcj2a View Drop Down
Member
Member
Avatar
Sponsor Member x 5

Joined: 21 Oct. 2006
Location: Arlington, VA
Status: Offline
Points: 8539
Post Options Post Options   Thanks (0) Thanks(0)   Quote samcj2a Quote  Post ReplyReply Direct Link To This Post Posted: 05 Jan. 2009 at 12:38pm
Sean yes, I must have been comparing 10/16 to 13/32.  Confused

I wonder if there is something missing still.  They say the pedal pressure is unchanged which would be true if the leverage that the pedal has is reduced since the clutch plate pressure is reduced.  That is consistent with the shorter moment. What does not seem intuitive to me is that shorter cable travel would fix the problem that they say was found to be the result of the the driver failing to depress the clutch pedal all the way.  With that being the root cause, they would want to increase the cable travel, at least on the surface of it.  OTOH, they have not told us in this bulletin what changes were made to the pressure plate.  (They did heavy up the driven plate's hub, but I don't take that as compensating for not enough pedal travel.)  I assume there were no changes to the pressure plate assembly.  Here is what I think the explanation is: Since the moment on the "pedal rod end" was reduced, the same amount of pedal movement will, in fact, result in greater movement of the cable, not less, and that is consistent with the pedal's having less leverage and requiring the pressure plate springs to require less force to release the clutch at the pressure plate, not the pedal.

When I first replied, I did not reread the bulletin you posted that started this, and I was visualizing the cable rod end moment as being longer which would have resulted in longer cable travel by virtue of my mental lapse on the moment's being increased.  The fix I incorrectly visualized could not be implemented because there probably is not enough metal at the end of the cable end lever.  I think the only reason they tell you to braze up the original hole is so there is no opportunity to use the wrong hole.

Anyway, I think that my current explanation is correct.  As always, though, I stand ready to be corrected! LOL


Edited by samcj2a - 06 Jan. 2009 at 10:58am
Sam

1946 CJ2A   15292 ACM    6678

1947 CJ2A 122031 ACM 111989

Are Glass Bowl Fuel Pumps OE?
Back to Top
sean View Drop Down
Moderator Group
Moderator Group

Sponsor Member

Joined: 20 July 2005
Location: North Idaho
Status: Offline
Points: 7368
Post Options Post Options   Thanks (0) Thanks(0)   Quote sean Quote  Post ReplyReply Direct Link To This Post Posted: 06 Jan. 2009 at 11:02am
Sam:
Quote OTOH, they have not told us in this bulletin what changes were made to the pressure plate.
Ahh, but they did! Ya gotta remember all the old-school terminology differences.  Willys didn't call it a pressure plate, but a "clutch" (assembly), and the clutch disc was called a "driven plate".

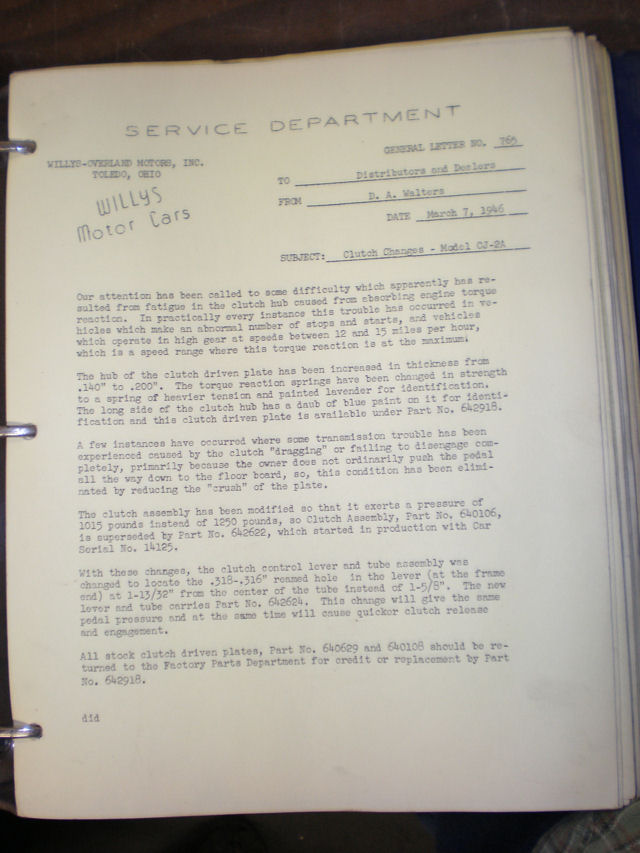

Per Bobs bulletin #765, paragraph 4: "clutch assembly (aka pressure plate) .... exerts a pressure of 1015 lbs instead of 1250 lbs".

I'll have to spend some time analyzing it, but it seems Willys was in trial-and-error mode to "field fix" a design flaw, trying first one thing, then another!
  1. change cable length at #12315
  2. change pressure plate at #14125 (or 6)
  3. change clutch lever at #14126
  4. change clutch disc at #21653
That's a lot of changes in a short period of time to get it right!

Sean
Back to Top
samcj2a View Drop Down
Member
Member
Avatar
Sponsor Member x 5

Joined: 21 Oct. 2006
Location: Arlington, VA
Status: Offline
Points: 8539
Post Options Post Options   Thanks (0) Thanks(0)   Quote samcj2a Quote  Post ReplyReply Direct Link To This Post Posted: 06 Jan. 2009 at 11:22am

Sean,

Until we know what changes were made to the "Clutch Assembly", we may not know the full story.   I will purse the terminology question, but since the word "assembly" is used, I think that the "assembly" included the pressure plate, the fingers, the springs and whatever other fasteners and parts are needed to put it together.   I think that the most important change was the change to the springs to reduce the force that was required to release the clutch (as indicated in your bulletin).  My bet is no other changes to that assembly were required.

A key point in my post was that the cable travel was, in fact, increased.  I think that both of us were intially misunderstanding that the moment that we now both understand to be reduced was at the cable end of the control rod and levers as opposed to where it actually was, at the pedal end of the control rod.  Given that the moment was reduced at the pedal end, the conclusion must be that the cable travel was increased for the same amount of pedal travel.  Further, the changes that I described all all consistent with a fix to the problem that was described.  Reduced cable travel would not accomplish a fix as far as I can see.



Edited by samcj2a - 06 Jan. 2009 at 11:24am
Sam

1946 CJ2A   15292 ACM    6678

1947 CJ2A 122031 ACM 111989

Are Glass Bowl Fuel Pumps OE?
Back to Top
sean View Drop Down
Moderator Group
Moderator Group

Sponsor Member

Joined: 20 July 2005
Location: North Idaho
Status: Offline
Points: 7368
Post Options Post Options   Thanks (0) Thanks(0)   Quote sean Quote  Post ReplyReply Direct Link To This Post Posted: 06 Jan. 2009 at 11:47am
Sam:
Quote Until we know what changes were made to the "Clutch Assembly", we may not know the full story. ... I think that the most important change was the change to the springs to reduce the force that was required to release the clutch (as indicated in your bulletin).
That is the only component change noted in the parts list.

Quote A key point in my post was that the cable travel was, in fact, increased.
Quite right.  I was forgetting about the link rod to the "other" lever!

Get's even more complicated now, w/16 possible combinations of cable, lever, pressure plate & clutch disc!

Sean
Back to Top
samcj2a View Drop Down
Member
Member
Avatar
Sponsor Member x 5

Joined: 21 Oct. 2006
Location: Arlington, VA
Status: Offline
Points: 8539
Post Options Post Options   Thanks (0) Thanks(0)   Quote samcj2a Quote  Post ReplyReply Direct Link To This Post Posted: 06 Jan. 2009 at 11:57am

I suppose another solution is to just push the clutch to the floor!

At least I'll be on notice to pay more attention to what is going on when I disassemble my clutch for whatever reason.

I did finally look at your parts list to and did see that the springs were the only thing to change.  In looking at that list for all three editions of the list, I was reminded that the supplier of the later clutch assembly was Auburn.  I recall seeing the mention of more than one vender from what I recall was either a service manual or a mechanics manual that I had back in the day.   I don't recall the name of the vendor of the original clutch.  Do you?

Sam

1946 CJ2A   15292 ACM    6678

1947 CJ2A 122031 ACM 111989

Are Glass Bowl Fuel Pumps OE?
Back to Top
lowenuf View Drop Down
Member
Member
Avatar
Sponsor Member x 2

Joined: 29 Aug. 2006
Location: Ohio
Status: Offline
Points: 8922
Post Options Post Options   Thanks (0) Thanks(0)   Quote lowenuf Quote  Post ReplyReply Direct Link To This Post Posted: 06 Jan. 2009 at 12:35pm
original pressure plate manufacturer was Auburn, and original clutch disc was Borg & Beck :)
45 #10033 ACM #47
45 #10163 ACM #188
57 CJ5    Dauntless V6, T-18 4-speed, D-44 rear/D-30 front, D-20 twin stick
