fuel level sending unit

 Post Reply Post Reply
Author
Message
sean View Drop Down
Moderator Group
Moderator Group

Sponsor Member

Joined: 20 July 2005
Location: North Idaho
Status: Offline
Points: 7368
Post Options Post Options   Thanks (0) Thanks(0)   Quote sean Quote  Post ReplyReply Direct Link To This Post Topic: fuel level sending unit
    Posted: 26 July 2007 at 1:23am
Willys lists this as part of Group 16 - "Gauges".  I've chosen to list it here in the "fuel" group.  Makes more sense:

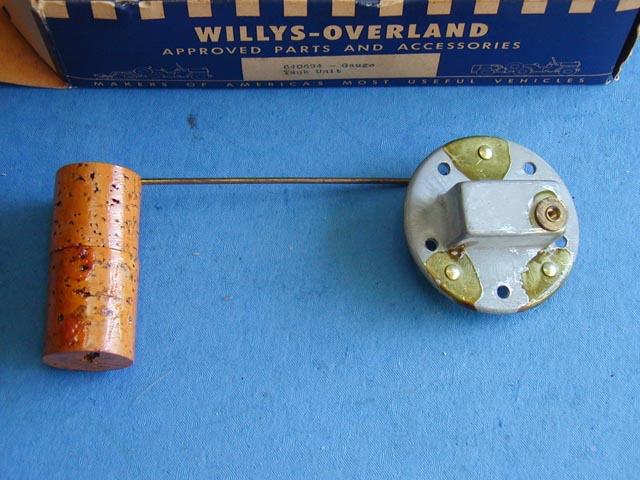

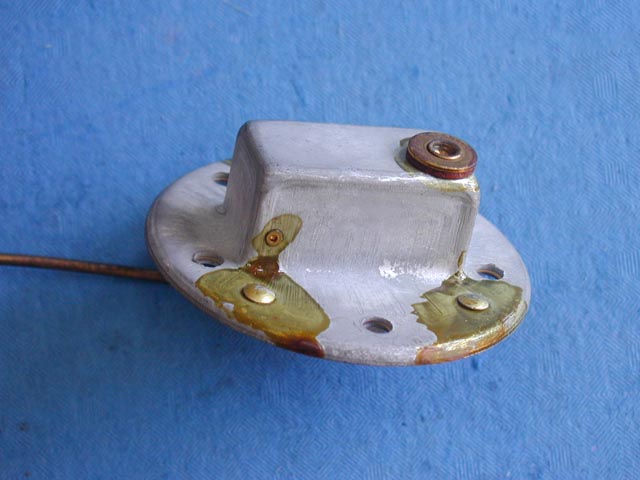

Group 16-02,  Part #640694 - GAUGE, fuel tank unit

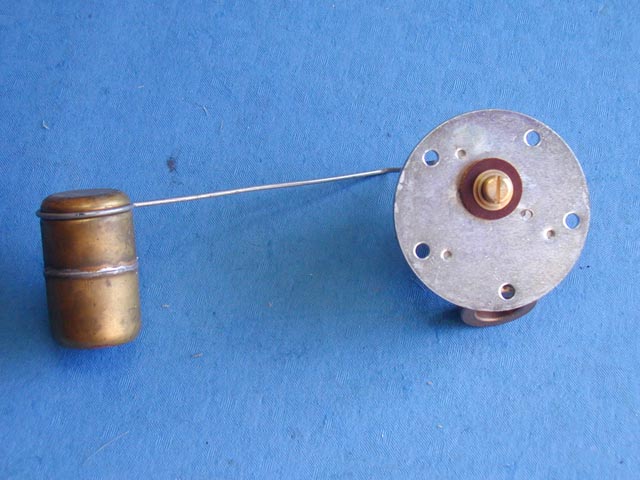

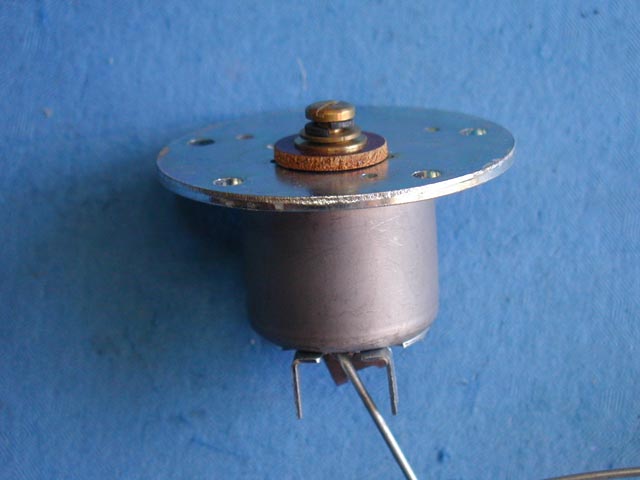

This is the later style, commonly used as replacement for the original:





Sean
Back to Top
p3ferris View Drop Down
Member
Member
Avatar

Joined: 22 July 2005
Location: Norfolk Nebraska
Status: Offline
Points: 3812
Post Options Post Options   Thanks (0) Thanks(0)   Quote p3ferris Quote  Post ReplyReply Direct Link To This Post Posted: 26 July 2007 at 5:03am
Sean that is about what mine looks like with the split brass float.  I was not saying mine was original just that that is what is in mine.  Thanks for posting it.
Ed
cj2a lefty
Back to Top
Mike S View Drop Down
Member
Member


Joined: 20 May 2006
Location: West Coast
Status: Offline
Points: 2316
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mike S Quote  Post ReplyReply Direct Link To This Post Posted: 30 July 2007 at 12:43pm
Is there a test protocol for determining function on these sending usits? Mine unit is like the one at the bottom - later style.

Thanks

Mike
'47 CJ2A -- #114542
Warn FF D41 rear
Lock-Right locker
11" drum brakes
Dual master cylinder
T90C Transmission
16 X 6 Jeep truck wheels
Cooper STT Pro tires
Back to Top
sean View Drop Down
Moderator Group
Moderator Group

Sponsor Member

Joined: 20 July 2005
Location: North Idaho
Status: Offline
Points: 7368
Post Options Post Options   Thanks (0) Thanks(0)   Quote sean Quote  Post ReplyReply Direct Link To This Post Posted: 31 July 2007 at 2:31am
Mike:

It's just a variable resistor, measure it w/an ohm meter.  At the "full" position, it should be 0 (or nearly so) ohms.  At empty, it should be 130-150 ohms.

Sean
Back to Top
Mike S View Drop Down
Member
Member


Joined: 20 May 2006
Location: West Coast
Status: Offline
Points: 2316
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mike S Quote  Post ReplyReply Direct Link To This Post Posted: 31 July 2007 at 5:13am
Originally posted by sean sean wrote:

Mike:It's just a variable resistor, measure it w/an ohm meter.  At the "full" position, it should be 0 (or nearly so) ohms.  At empty, it should be 130-150 ohms.Sean


That's what I needed to know. Thanks!

M
'47 CJ2A -- #114542
Warn FF D41 rear
Lock-Right locker
11" drum brakes
Dual master cylinder
T90C Transmission
16 X 6 Jeep truck wheels
Cooper STT Pro tires
Back to Top
