Gas pedal Configuration

 Post Reply Post Reply
Author
Message
Larry Metzgar View Drop Down
Member
Member


Joined: 07 Aug. 2005
Status: Offline
Points: 4
Post Options Post Options   Thanks (0) Thanks(0)   Quote Larry Metzgar Quote  Post ReplyReply Direct Link To This Post Topic: Gas pedal Configuration
    Posted: 03 July 2007 at 11:39pm
I am ready to hook up the gas pedal to carb linkage and am a little confussed. I have hooked up the rod on the back of the gas pedal to the one arm of the bracket that is mounted to the back of the engine block. That leaves the other part of this bracket for another linkage. I assume there is a rod between this and the carb. Is there something else I need? Where does the throttle pull cable mount to the carb? I have another part in my parts box that has a bracket with a hole in it and two linkages but dont know if this is used on this. The jeep is a 48 cj2a. The choke cable was easy but the rest has me guessing. There also was a good size spring in the box that must keep the gas pedal a little stiff, but not sure. Thanks for the help

Larry
Larry Metzgar
Back to Top
samcj2a View Drop Down
Member
Member
Avatar
Sponsor Member x 5

Joined: 21 Oct. 2006
Location: Arlington, VA
Status: Offline
Points: 8539
Post Options Post Options   Thanks (0) Thanks(0)   Quote samcj2a Quote  Post ReplyReply Direct Link To This Post Posted: 04 July 2007 at 1:44am
Here's a photo that should help.


Sam

1946 CJ2A   15292 ACM    6678

1947 CJ2A 122031 ACM 111989

Are Glass Bowl Fuel Pumps OE?
Back to Top
Larry Metzgar View Drop Down
Member
Member


Joined: 07 Aug. 2005
Status: Offline
Points: 4
Post Options Post Options   Thanks (0) Thanks(0)   Quote Larry Metzgar Quote  Post ReplyReply Direct Link To This Post Posted: 04 July 2007 at 2:50am
Thanks for the picture. I have the spring and see where that goes now. I see where the front of the rod goes to the carb, but cant make out where the back of the rod goes. On the same bracket?
Thanks

Larry
Larry Metzgar
Back to Top
lowenuf View Drop Down
Member
Member
Avatar
Sponsor Member x 2

Joined: 29 Aug. 2006
Location: Ohio
Status: Offline
Points: 8917
Post Options Post Options   Thanks (0) Thanks(0)   Quote lowenuf Quote  Post ReplyReply Direct Link To This Post Posted: 04 July 2007 at 3:39am
there is a pivoting arm mounted to the rear of the engine block, pedal linkage connects to one side of it, then the carb linkage connects to the other side...
45 #10033 ACM #47
45 #10163 ACM #188
57 CJ5    Dauntless V6, T-18 4-speed, D-44 rear/D-30 front, D-20 twin stick



Back to Top
GaryArf View Drop Down
Member
Member

Sponsor Member

Joined: 21 July 2005
Location: Baxter MN
Status: Offline
Points: 3905
Post Options Post Options   Thanks (0) Thanks(0)   Quote GaryArf Quote  Post ReplyReply Direct Link To This Post Posted: 04 July 2007 at 5:39am
Here is a pic of the cable mounting.


Shot with Canon PowerShot A520 at 2007-07-04


Shot with Canon PowerShot A520 at 2007-07-04
CJ2A #10021 #34692 #58500



Back to Top
sean View Drop Down
Moderator Group
Moderator Group

Sponsor Member

Joined: 20 July 2005
Location: North Idaho
Status: Offline
Points: 7368
Post Options Post Options   Thanks (0) Thanks(0)   Quote sean Quote  Post ReplyReply Direct Link To This Post Posted: 04 July 2007 at 12:31pm
And the diagram from the manuals:

(click to enlarge)




Edited by sean - 16 Jan. 2009 at 2:23pm
Back to Top
GaryArf View Drop Down
Member
Member

Sponsor Member

Joined: 21 July 2005
Location: Baxter MN
Status: Offline
Points: 3905
Post Options Post Options   Thanks (0) Thanks(0)   Quote GaryArf Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar. 2009 at 7:40am
I'ld like to do a follow-up here with a question. I have been painting a parts from a few Jeeps and have noticed a difference in the end of the shaft and lever. some have two holes and some have one..? does anyone know the reason?   Spring?



CJ2A #10021 #34692 #58500



Back to Top
sean View Drop Down
Moderator Group
Moderator Group

Sponsor Member

Joined: 20 July 2005
Location: North Idaho
Status: Offline
Points: 7368
Post Options Post Options   Thanks (0) Thanks(0)   Quote sean Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar. 2009 at 8:50am
Gary:
Quote ... I have been painting a parts from a few Jeeps and have noticed a difference in the end of the shaft and lever. some have two holes and some have one..? does anyone know the reason?   Spring?
Good timing!  I'm still working on this SB, so it's not in the PDF yet, but may be the answer.

SB #829, June 23, 1947 - "Accelerator Return Spring"

"This spring was relocated and made stronger to give smoother and more positive action ... Model 4-63 ... on March 12, 1947."

While the SB only mentions the model 4-63, it's possible the same arm was used across the board, even if the new hole was not used on other models.  No sense having 2 different parts if 1 will do for both.

Sean
Back to Top
samcj2a View Drop Down
Member
Member
Avatar
Sponsor Member x 5

Joined: 21 Oct. 2006
Location: Arlington, VA
Status: Offline
Points: 8539
Post Options Post Options   Thanks (0) Thanks(0)   Quote samcj2a Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar. 2009 at 8:55am
The extra hole is not in either my '46 15292 or my '47 122031.   I think you are correct about the connection to the retracting spring.  The original spring was short connecting to to so-called CLIPs, retracting, one at the carburetor and another at the SHAFT and LEVER, cross, accelerator, to quote from the parts list.   Although there is only a single part for the cross shaft and lever, there are two retracting springs listed:
633011 SPRING, retracting 1 644067 1,2
644067 SPRING, retracting 1 2,3

Perhaps this is the spring that Sean just mentioned.
Sam

1946 CJ2A   15292 ACM    6678

1947 CJ2A 122031 ACM 111989

Are Glass Bowl Fuel Pumps OE?
Back to Top
sean View Drop Down
Moderator Group
Moderator Group

Sponsor Member

Joined: 20 July 2005
Location: North Idaho
Status: Offline
Points: 7368
Post Options Post Options   Thanks (0) Thanks(0)   Quote sean Quote  Post ReplyReply Direct Link To This Post Posted: 28 Mar. 2009 at 9:49am
Those are the same 2 spring part numbers in the SB, with 644067 superseding 633011.

It's possible they just blew it and forgot to mention CJ-2A as well as 4-63.

Sean
Back to Top
sean View Drop Down
Moderator Group
Moderator Group

Sponsor Member

Joined: 20 July 2005
Location: North Idaho
Status: Offline
Points: 7368
Post Options Post Options   Thanks (0) Thanks(0)   Quote sean Quote  Post ReplyReply Direct Link To This Post Posted: 29 Mar. 2009 at 10:58am
Found it!

SB #48-12, Feb. 24, 1948 - Accelerator Spring:

"Part No. 644067 Accelerator Retracting Spring supersedes Part No. 633011 on Model CJ-2A to improve accelerator action and to use the same spring as used on other models. Started with Model CJ-2A vehicle Serial No. 167127 on January 27, 1948"

However, NO mention the arm itself changing.

Sean
Back to Top
kilroy View Drop Down
Member
Member


Joined: 14 Dec. 2009
Location: Iowa
Status: Offline
Points: 2096
Post Options Post Options   Thanks (0) Thanks(0)   Quote kilroy Quote  Post ReplyReply Direct Link To This Post Posted: 22 Feb. 2011 at 11:06am
I've looked in my books, looked over on Walck's (what was listed there didn't sound right in the description and no pic). and done an advanced search. I can't find the answer.
In Sean's diagram above from the parts list book (page 39), what is used as a point of connection between #11 "Link" and #13 "Accelerator Assembly". Is it some sort of a rubber type retainer? Anybody have a picture? (maybe it's sitting in one of my parts boxes, if I knew what it looked like) Source? Extra one? Do I need a whole new pedal?
Thanks, you guys, for any info!
"You know, I'm too old a bunny to get very excited about all this."
General H.E. von Salmuth
Commander
German Fourth Army
France: 5 June 1944

1947 Willys CJ2A
1947 Bantam T3-C Trailer

Back to Top
sean View Drop Down
Moderator Group
Moderator Group

Sponsor Member

Joined: 20 July 2005
Location: North Idaho
Status: Offline
Points: 7368
Post Options Post Options   Thanks (0) Thanks(0)   Quote sean Quote  Post ReplyReply Direct Link To This Post Posted: 22 Feb. 2011 at 11:23am
Originally posted by kilroy kilroy wrote:

... what is used as a point of connection between #11 "Link" and #13 "Accelerator Assembly" ...
Nothing.

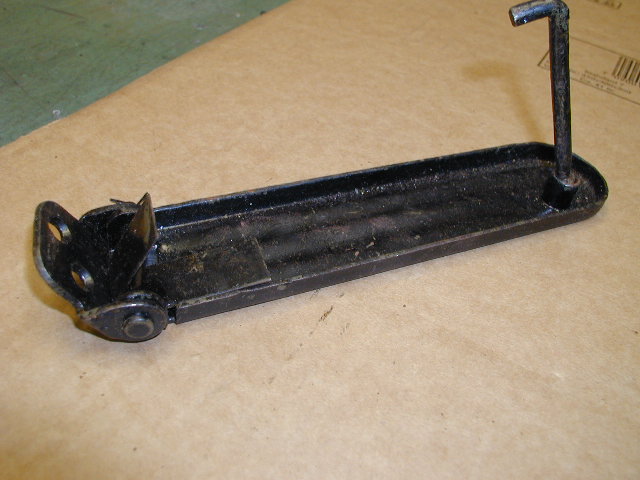

The tubular collar, attached to the treadle, is just constricted around the top, to keep the ball link from falling out:


Back to Top
kilroy View Drop Down
Member
Member


Joined: 14 Dec. 2009
Location: Iowa
Status: Offline
Points: 2096
Post Options Post Options   Thanks (0) Thanks(0)   Quote kilroy Quote  Post ReplyReply Direct Link To This Post Posted: 22 Feb. 2011 at 11:37am
Thanks, Sean!
Now I've got to see if I have enough metal left on the pedal to "reconstrict" it on there. A little dab of lube in there?
YOU ARE THE WILLYS WIZARD, SIR!
"You know, I'm too old a bunny to get very excited about all this."
General H.E. von Salmuth
Commander
German Fourth Army
France: 5 June 1944

1947 Willys CJ2A
1947 Bantam T3-C Trailer

Back to Top
samcj2a View Drop Down
Member
Member
Avatar
Sponsor Member x 5

Joined: 21 Oct. 2006
Location: Arlington, VA
Status: Offline
Points: 8539
Post Options Post Options   Thanks (0) Thanks(0)   Quote samcj2a Quote  Post ReplyReply Direct Link To This Post Posted: 22 Feb. 2011 at 11:46am
Originally posted by kilroy kilroy wrote:

Thanks, Sean!
 . . . . YOU ARE THE WILLYS WIZARD, SIR!
That's for sure! Clap
Sam

1946 CJ2A   15292 ACM    6678

1947 CJ2A 122031 ACM 111989

Are Glass Bowl Fuel Pumps OE?
Back to Top
Flacker545 View Drop Down
Member
Member


Joined: 08 Mar. 2017
Location: California
Status: Offline
Points: 33
Post Options Post Options   Thanks (0) Thanks(0)   Quote Flacker545 Quote  Post ReplyReply Direct Link To This Post Posted: 13 May 2017 at 11:22pm
Anyone know where I can get the just the bracket and metal "v" shape piece. I have the pedal but not theses and I can only find them in a set.
