Stock gastank

 Post Reply Post Reply Page  <12
Author
Message
tony View Drop Down
Member
Member


Joined: 23 Nov. 2005
Location: ohio
Status: Offline
Points: 1386
Post Options Post Options   Thanks (0) Thanks(0)   Quote tony Quote  Post ReplyReply Direct Link To This Post Posted: 21 June 2007 at 3:19am
Hey Sean, There is another, in my 45 and two early 46 column shifts the tank says TANK AUTO. I have all the other tanks your talking about.  I mention this to Gary at the reunuion. I do think these are the originals.
Too many jeeps.....GOT JEEP ?
Back to Top
GaryArf View Drop Down
Member
Member

Sponsor Member

Joined: 21 July 2005
Location: Baxter MN
Status: Offline
Points: 3905
Post Options Post Options   Thanks (0) Thanks(0)   Quote GaryArf Quote  Post ReplyReply Direct Link To This Post Posted: 22 June 2007 at 2:11am
Sam,
I guess original may be a misnomer(sp)?  The original tank I'm referring to is the one in my first post, the one marked with the big "A" on it.  Just trying to pin down what is original.

Tony,
try sending me some more pics and I'll see if I can post them for you. (last time I couldn't but maybe the Cat can.)

Gary
CJ2A #10021 #34692 #58500



Back to Top
sean View Drop Down
Moderator Group
Moderator Group

Sponsor Member

Joined: 20 July 2005
Location: North Idaho
Status: Offline
Points: 7368
Post Options Post Options   Thanks (0) Thanks(0)   Quote sean Quote  Post ReplyReply Direct Link To This Post Posted: 22 June 2007 at 6:47am

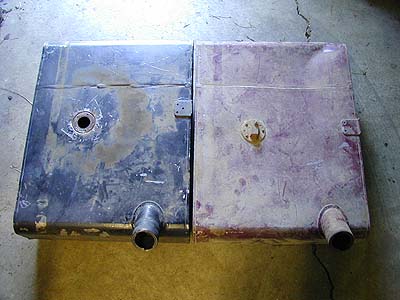

Here's the 2 from my '46 & '47.  Turns out the '46 is not original (I had already suspected that, not being body color):

The 2 tanks are identical except for the rear bracket mount.  The '46 (black) rear bracket is 2" further inward, so doesn't line up w/the tub bolt hole.  That's why I can't find my rear bracket: never had one!  Anyone know what this tank was made for?

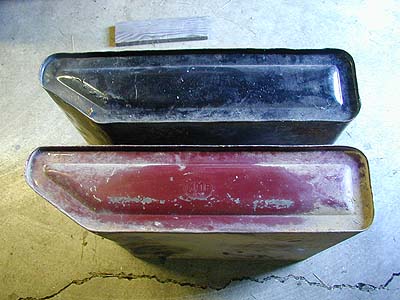

The side forming is the same as Garys unmarked one, w/more rounded edges:

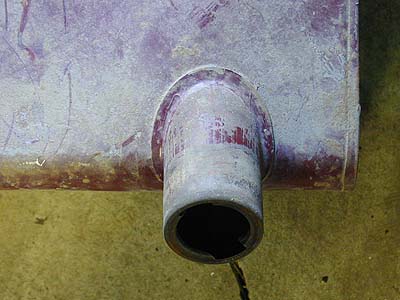

Both filler necks flanged & spot welded:

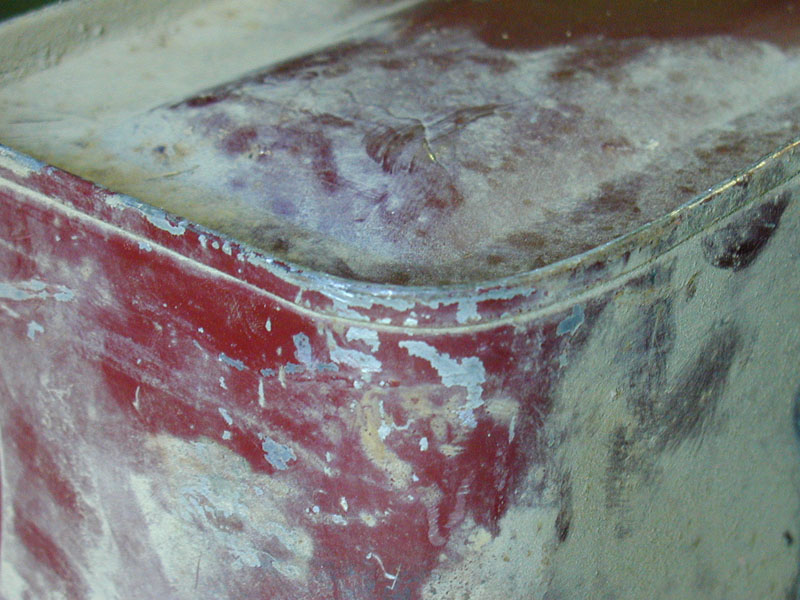

Seam crimps smooth, not serrated:



Sean


Edited by sean - 22 June 2007 at 6:48am
Back to Top
sean View Drop Down
Moderator Group
Moderator Group

Sponsor Member

Joined: 20 July 2005
Location: North Idaho
Status: Offline
Points: 7368
Post Options Post Options   Thanks (0) Thanks(0)   Quote sean Quote  Post ReplyReply Direct Link To This Post Posted: 22 June 2007 at 6:50am
Tony:
Quote .... in my 45 and two early 46 column shifts the tank says TANK AUTO.
We need photos! Wink

Sean


Edited by sean - 22 June 2007 at 6:50am
Back to Top
lowenuf View Drop Down
Member
Member
Avatar
Sponsor Member x 2

Joined: 29 Aug. 2006
Location: Ohio
Status: Offline
Points: 8917
Post Options Post Options   Thanks (0) Thanks(0)   Quote lowenuf Quote  Post ReplyReply Direct Link To This Post Posted: 27 June 2007 at 6:01am
here is a tank, that i can only assume is original to the 2a i removed it from, 2a is a '47.....

45 #10033 ACM #47
45 #10163 ACM #188
57 CJ5    Dauntless V6, T-18 4-speed, D-44 rear/D-30 front, D-20 twin stick



Back to Top
sean View Drop Down
Moderator Group
Moderator Group

Sponsor Member

Joined: 20 July 2005
Location: North Idaho
Status: Offline
Points: 7368
Post Options Post Options   Thanks (0) Thanks(0)   Quote sean Quote  Post ReplyReply Direct Link To This Post Posted: 27 June 2007 at 7:37am
Photos of Tonys '45 (green) and '46 (orange) "Tank Auto"s









Edited by sean - 27 June 2007 at 5:05pm
Back to Top
tony View Drop Down
Member
Member


Joined: 23 Nov. 2005
Location: ohio
Status: Offline
Points: 1386
Post Options Post Options   Thanks (0) Thanks(0)   Quote tony Quote  Post ReplyReply Direct Link To This Post Posted: 27 June 2007 at 9:46am
Thanks for postin Sean, The green one came out of my 45 and the orange came out of a early 46 column shift......Tony
Too many jeeps.....GOT JEEP ?
Back to Top
sean View Drop Down
Moderator Group
Moderator Group

Sponsor Member

Joined: 20 July 2005
Location: North Idaho
Status: Offline
Points: 7368
Post Options Post Options   Thanks (0) Thanks(0)   Quote sean Quote  Post ReplyReply Direct Link To This Post Posted: 27 June 2007 at 5:03pm
Tony:

OK, I assumed they were '48 since your photos were all called "48-" sumpthin.

Can you get a closer shot of the logo on the back of the green one?  And is that end indented, as opposed to outdented like most others?

Sean
Back to Top
lowenuf View Drop Down
Member
Member
Avatar
Sponsor Member x 2

Joined: 29 Aug. 2006
Location: Ohio
Status: Offline
Points: 8917
Post Options Post Options   Thanks (0) Thanks(0)   Quote lowenuf Quote  Post ReplyReply Direct Link To This Post Posted: 29 June 2008 at 2:13pm
i have, yet another version of the "tank auto", this time with smaller font, and the symbol on the same side as the name mark...along with the "HMMP" (?) version of tank. we are trying to decipher which we are going to refurb for the '45. Also, it is hard to see, but the bafle inside the tank auto looks as if they used the outer panel for the baffle, as it has the same namesake stamping on the side of it. both side panels on the tank auto are indented in, not outwards, and it's neck is welded, not soldered, like the other tank ..the sending units are different, the raised housing one has a cork float, the flat housing one has a soldered float.  low






45 #10033 ACM #47
45 #10163 ACM #188
57 CJ5    Dauntless V6, T-18 4-speed, D-44 rear/D-30 front, D-20 twin stick



Back to Top
F Bill View Drop Down
Member
Member

Sponsor Member x 2

Joined: 05 Dec. 2005
Location: central Texas
Status: Offline
Points: 7747
Post Options Post Options   Thanks (0) Thanks(0)   Quote F Bill Quote  Post ReplyReply Direct Link To This Post Posted: 12 June 2011 at 3:35pm
Did we ever come to a conclusion if the unmarked and tank auto tanks are original tanks ??
If you haven't checked out the tech FAQ section, go to:
http://www.thecj2apage.com/forums/tech-faq_forum57.html
for a lot of great stuff you need to know!!

Back to Top
samcj2a View Drop Down
Member
Member
Avatar
Sponsor Member x 5

Joined: 21 Oct. 2006
Location: Arlington, VA
Status: Offline
Points: 8539
Post Options Post Options   Thanks (0) Thanks(0)   Quote samcj2a Quote  Post ReplyReply Direct Link To This Post Posted: 09 Mar. 2013 at 10:01am
With thanks to Bob W, here is a link to his site with photos showing the results of his research into 2A/3A Fuel Tank Manufacturers, Mitchell Metal Products and O. L. Anderson.   Additional photos and information is here:  Original '46 fuel tank mfg .stamping




Edited by samcj2a - 09 Mar. 2013 at 2:39pm
Sam

1946 CJ2A   15292 ACM    6678

1947 CJ2A 122031 ACM 111989

Are Glass Bowl Fuel Pumps OE?
